Domain

Domain Status displays the system resource status, summary and service status of each server in the domain. The statuses displayed differ according to your license.

 The Domain Status provides the following information:

• Domain status and role of each server
• Engine/security program update, server update
• Collecting and downloading server report
• Server data integrity check
• Latest/Current patch version

Note

Update Now under Server Update will only be activated when logged in with Super Admin account.

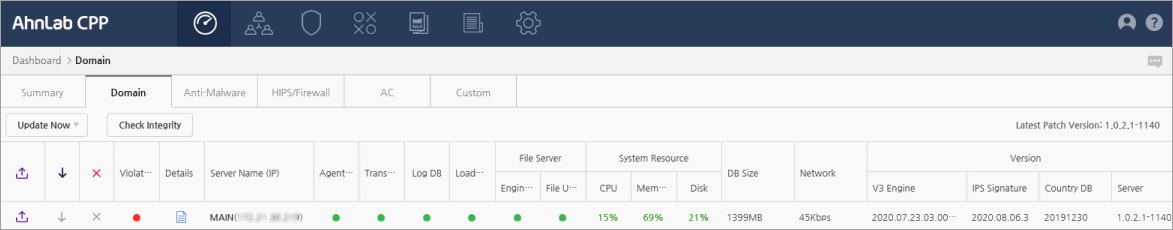

Domain Overview

The domain status displays the system resource and summary (CPU, memory, disk, network and database usage, engine version of each server, product version and latest patch version), and service status (agent service, database server (statistics DB and log DB), file server and load balancer service status) of each server.

• Latest Patch Version: The latest patch version of the server.
• Current Patch Version: The server's current patch version.
• Collect Server Report (): Collect the report on the selected server.
• Download Server Report (): Download the report on the selected server.
• Remove Server Report (): Remove the report on the selected server.
• Integrity Violated( ): Displays the status of integrity.

• Data Integrity Check (): Check the data integrity of all the servers. Use Data Integrity Check to check for file modification after initial installation or patching.
• Server Name (IP Address): The server name and IP address.
• Agent Service: The agent service status - green when normal () and red when abnormal ().
• Transaction DB: The transaction DB status - green when normal () and red when abnormal ().
• Log DB: The log DB status - green when normal () and red when abnormal ().
• Load Balancer Service: The load balancer service status - green when normal () and red when abnormal ().
• File Server: The file server status - green when normal () and red when abnormal ().
• Engine Distribution: The engine distribution status - green when normal () and red when abnormal ().
• File Upload: The file upload server status - green when normal () and red when abnormal ().
• System Resource: CPU, memory, disk and network usage. System resource usage is shown in green for 10-70%, orange for 71-90% and red for 91-100%.
• CPU: CPU usage in %.
• Memory: Memory usage in %.
• Disk: Disk usage in %.
• DB Size: Database size in MB.
• Network: Network usage in Kbps.
• Version: V3 engine version and server patch version.
• V3 Engine: V3 engine version.
• IPS Signature: Current IPS signature version.
• Country DB: Current country DB version.
• Server: Server patch version.

Engine/Security Program Update

Send a command to each server in the domain to update the engine and security program.

• Upload Engine/Security Program File: Upload the engine and security program file to the server to use the server as the engine update server. Click Upload Engine/Security Program File to manually upload the engine and security program file.
• Update Now: Gets the latest update file from the update server. This menu appears only when 'Ahnlab Update Server' or 'User-defined Server' is selected as the update server.

Note

Upload Engine/Security Program File  is only available when CPP server is set as the update server in Settings > Update > Update Server Settings. Engine or patch files will continue uploading in the background even when you close the upload window, and Login Timeout will not take effect.

IPS Signature Update

You can update the domain's IPS signature. When the update is complete, you are automatically logged out, so you will need to log in to the management console again.

• Upload IPS Signature File: The administrator can directly upload the IPS signature file to the server.

Note

IPS Signature Update is only available when CPP server is set as the update server in Settings > Update > Signature Update Server Settings. IPS signature will continue uploading in the background even when you close the upload window, and Login Timeout will not take effect.

• Update Now: Gets the latest signature file from the update server. This menu appears only when 'Ahnlab Update Server' or 'User-defined Server' is selected as the update server.

Server Update

Update each server in the domain. You will be automatically logged out when update is completed, so you need to log back in.

• Update Now: Update all the servers now. You need to log back in when update is completed. Click Update Now. The message Do you want to update the AhnLab EPP Management server? You will be automatically logged out when the update starts. Please log in again after the update. will appear. Click Yes.
• Upload Server File: Upload the patch file to the server to use the server as the patch update server. Click Upload Server File to manually upload the patch file. When you click Upload Server File, <Upload Server File> will appear. Click Browse... to upload the patch file to the server.

Checking Integrity

Use Data Integrity Check to check for file modification after initial installation or patching. To check the server's data integrity:

1. On the top of the web page, click Dashboard.
2. From the left menu, select Dashboard > Domain Status.
3. From the domain status list, select the server to run data integrity check and click Check Data Integrity.
4. In <Data Integrity Check>, click Refresh to update the hash value.

• Refresh: Update the data integrity check information.
• Time: The time the server's data integrity was checked.
• Description: The description of the server's data integrity check - starting and ending time, and corrupted data.

5. Click OK.
