Details for Detection Status

The relation of process execution and suspicious behavior is visualized in the detection status. A host system and objects such as a process, file, registry, network, etc are displayed as icons. An arrow will be used to show the relation for individual objects, and when the system name, process name, or file name is selected in the suspicious behavior tree, the summary for the selected object will be displayed.

You can view the following information from Detection Status Details:

• Check co-relation for the detected system/file/process
• Respond to the detected system/file/process. (Block Network, Collect Artifact, Terminate Process, Search for Files/Collect Files)

Note

Exception cases, which do not record logs for suspicious behaviors, may not be properly displayed in the process tree diagram. The exception cases are as follows:
1) If the same behavior does not occur within the next 20 minutes, the logs for suspicious behaviors will not be created. In such a case, a tree may be disconnected as logs are not created or the tree may not be properly displayed.
2) Suspicious behaviors executed in the shared folders will not be visually displayed.
3) If a mount point for a USB memory stick does not exist, suspicious behaviors will not be displayed in the tree.
4) The tree can be broken if all logs are not properly collected at the moment when a backup file for V3 suspicious behaviors is replaced.

Process Tree

The process tree visually shows the relation between process execution and suspicious behavior in three different types of tree structure. Process Tree shows the additional behaviors as well as V3 engine detections. The additional behavior information is shown in gray.

Click the system, file, process or registry in the process tree to view the detailed information. You can also block network, collect artifact, terminate process or search for or gather a file from Respond.

Configuration for Process Tree

• Display Settings: You can have three different types of display such as Expanding from left to right, dropping down (wide) and dropping down (narrow). Refer to Display Settings for Process Tree for details about tree configuration.

• Expand/Collapse: You can expand or collapse the tree structure using the required menu.
• Icons: The icons used in the process tree indicate the following information:
• Process (): Displays a behavior for a process in the process tree.
• File (): Displays a behavior for a file in the process tree.
• Network(): Displays a behavior for the network in the process tree.
• Registry (): Displays a behavior for the registry in the process tree.
• System (): Displays a behavior for a system in the process tree.

Agent System

Click the system icon in the tree process to display the information for the detected agent information in the right side of the page. You can run commands such as completely  network intrusion prevention, collecting AhnReport and artifact to respond to the detected systems. Click the icon () next to a system name to move to Detection > Agent.

• Respond; You can run commands such as network intrusion prevention, collecting AhnReport and artifact to respond to the detected agent systems.
• Block Network: Runs a command to completely block the network connection for the detected agent systems. The agent system, which received the network block command will be blocked for network access. If the V3 personal firewall is enabled in agent systems, the network block command can be run in real-time. Network block prevents a spread of a malicious code by blocking the network connection until a root cause for abnormal traffic generated in an agent system is found. If it is concluded that there is no agent system issue, the network block can be disabled.
• Collect AhnReport: Runs a command to collect AhnReport for the detected agent systems. AhnReport collects the information from the file, registry, system, network, hardware, installed program and timeline. If a command for collecting AhnReport is run, the timeout settings can be configured. For example, if the timeout is specified for 20 minutes and there is no agent response for 20 minutes, it will be determined that the command is not properly delivered.
• Collect Artifact: Runs a command to collect Artifact for the detected agent systems. Collects the traces created by using the operating system or application from Collect Artifact. Also collects the logs, history, timeline and registry information. View the details for collecting artifact in Collect Artifact.

• Default items: Collects the default items from EAC (Endpoint Artifacts Collector). Also collects the process, system, network, hardware, program, timeline, etc for the default items.

• User-defined items: Collects the required artifact only by writing the YAML syntax. Refer to Collecting User-Defined Artifact for writing the YAML syntax.

• Computer Name: Displays a computer name of a detected agent system.
• IP Address: Displays an IP address of a detected agent system.
• Operating System: Displays an operating system of a detected agent system.
• V3 Product: Displays the V3 program installed in a detected agent system.
• Engine Version: Displays the V3 engine version installed in a detected agent system.
• Last Manual Scan: Displays the last date for the V3 manual scan run in an agent system.

Process ()

Click the Process icon in the tree process to display the information for the detected Process in the right side of the page. You can run a command for Terminate Process to respond to a detected process.

• Respond; Runs a command to terminate a process, search for a file or collect a file based on the detected process information.

• Terminate Process: Terminates a detected process. Click Terminate Process to run a command for terminating a process.

• Process Name: Displays a detected process name.

• Process ID: Displays a detected process ID (PID).

• File Path: Displays a detected process path.

• Hash value: Displays a hash value of a detected process.

• Detection Time: Displays the time when a process was detected.

Note

To view the command status for file search and file collection, select Search for File or Collect File under Response.

File ()

Click the Process icon in the process tree to display the information for the detected file in the right side of the page. Run a command for Search for File or Collect File to respond to a detected file. Click the icon () next to a file name to move to Detection > File.

• Respond: Searches for or collects a file based on the detected file information.
• Search for File: Searches for a file using the detected file information. Files can be searched using domain/group, agent or IP range. The file search results are displayed in Respond > Search for File.
• Collect File: Runs a command to collect a file. Click Collect File and then a message saying ”Do you want to collect the selected file?” will appear. Click Yes to run a command to collect a file to an agent system. The command results for collecting a file are displayed in Respond > Collect File.

• File Name: Displays a detected file name.
• Hash Value (MD5): Displays the MD hash value for a detected file.
• File Size (bytes): Displays a detected file size. The fie size unit is bytes.
• File Path: Displays a detected file path.
• Detection Time: Displays the time when a file was detected.

Network ()

Click the network icon in the process tree to display the information for the detected the network in the right side of the page. No response is available in the network information,

• Host Address: Displays a host address accessing the network.
• IP Address: Displays an IP address accessing the network.
• Port No.: Displays an IP address accessing the network.
• URL: Displays an URL information accessing the network.

Registry ()

Click the Registry icon in the process tree to display the information for the detected registry in the right side of the page. No response is available in the registry information,

• Key Name: Displays an accessed registry key.
• Value: Displays a value name under an accessed registry key.
• Data: Displays data shown under an accessed registry key.

Details

You can view the detailed information about the detected behaviors. The detailed information shows default information, detailed behaviors and IOC detection information.

Default Information

Displays the default information such as malicious property or hash value.

• Name: Displays a malicious code name.
• Diagnosis: Displays a detected item is malicious or not. If the detected item is determined to be malicious or suspicious, the diagnosis result will be shown to be Malicious or Suspicious.
• Hash value: Displays a file hash value

Behavior Information

Displays the detailed behavior information about the individual detection. The following information shows the details about process execution and suspicious behaviors. Click next to the detailed behavior information to select the required information such as View in order of occurrence, View in recent action order or View by behavior type.

Refer to Detection Behavior for detection details.

• View in recent action order: Displays a detected behavior in time order.
• View in recent action order Displays a detected behavior from the most recently occurred one.
• View by behavior type: Displays by categorized behavior type.
• Total: Displays the all behaviors about file/registry/network.

• Process: Displays a behavior only about a process.

• File: Displays a behavior only about a file.

• Registry: Displays a behavior only about a registry.

• Network: Displays a behavior only about a network.

• Common: Displays the common behavior Information.

• Occurred Time: Displays the behavior occurred time. (ex: 2019-04-16 10:32:23)
• Type: Categorizes file/process/registry/network.

Note

Depending on a behavior type, the information displayed in [Process Information] and [Target] may differ.

• [Process Information]
• File Name: Displays a file name related to the detected behavior.
• Process ID: Displays a process ID related to the detected behavior.
• Hash value: Displays a file hash value related to the detected behavior. The hash value identifies the file information.
• File Path: Displays a file path related to the detected behavior.
• File Size (bytes): Displays a file size related to the detected behavior.
• [Target]
• File Name: Displays a file name, which a file or a process accesses.
• Hash value: Displays a file hash value.
• Process ID: Displays a process ID of a file.
• File Path: Displays a file path.
• Cmd line: Indicates a command required to run a file.
• File Size (bytes): Displays a file size.
• Remote IP Address: Displays a IP address, which a file or a process remotely accesses.
• Remote Port No.: Displays a port, which a file or a process remotely accesses.
• Local IP Address: Displays a local IP address, which a file or a process remotely accesses.
• Local Port No.: Displays a local port, which a file or a process remotely accesses.
• Host Address: Displays a host address for network connection.
• IP Address: Displays an IP address used when a behavior such as connecting the network occurs.
• Port No.: Displays a port number used when a behavior such as connecting the network occurs.
• URL: Displays a URL used when a behavior such as connecting the network occurs.

IOC Detection Information:

Displays the detections made by IOC detection rules uploaded. To make a detection using IOC, the IOC files should be uploaded from IOC.

• Detected IOC Type: Displays the IOC rule information, which detects a behavior. Upload the IOC files in the STIX format to detect a behavior.
• Description: Displays the detailed about detected IOC. Displays the all behaviors about file/registry/network.

Note

STIX is compatible for the IOC file format. STIX 1.2 supports file, address object type and URL object type.

Displaying Process Tree

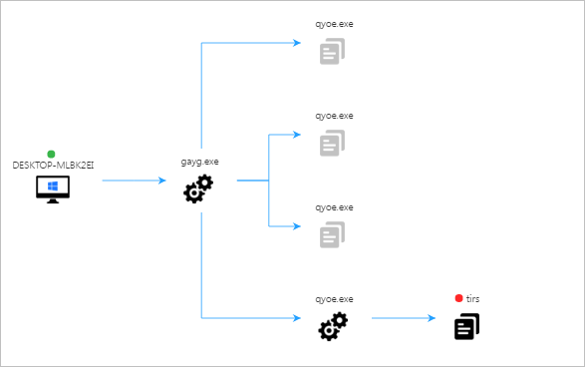

• Expand Right: Expands the tree from left to right.

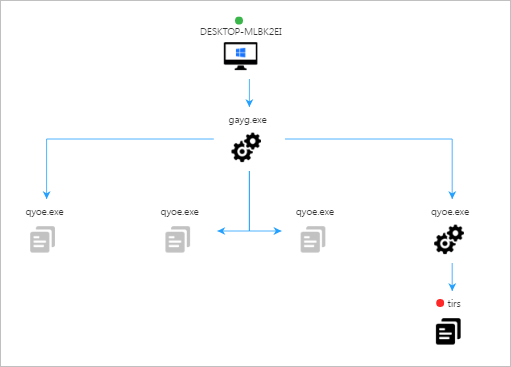

• Expand Down (Wide): Expands the tree from up to down.

• Expand Down (Narrow): Expands the tree from middle to down. The space between the objects is narrow.

Note

You can view the detections for suspicious behaviors in Detection Behavior.
