Report Template

You can create the query report template from the report template. The created template is used for creating the user-defined report.

The following items are features available in Report Template.

• Add/Modify/Delete a Query Report Template
• Add a graph (pie, line, bar graphic) to the report template

Report Template List

You can view the created template list from the report template list. You can check the report template list in the following way.

1. Select Report on the top of the page.
2. Select the Report > Report Template from the menu.
3. You can check the created report template.

• Add: You can add the report template to the query report.
• Delete: Deletes the selected report template from the list.
• Type: Type of report.
• Name: Name of the query report. Enter the name when saving the report template.
• File Created: Shows the date when the report template was created.

Add a Query Report Template

You can add the report template list in the following way.

1. Select Report on the top of the page.
2. Select Report Template.
3. Click Add > Query Report.
4. Select the report creation option from Report in <Add a Query Report Template>.

• Create a new report: Create a new report for creating a query report.
• Import a report: Imports the already created templates. Click Select a template..., select the template, and then click Import to use the existing template.

5. Create the graphic to add to the report in Graph Settings. When adding a graph to the report, click Add. Graphs can be added up to 3.

• Type: The available graph types are pie, bar, and line charts.
• Title: Enter the title for the chart.
• Graph Query: Enter the query for the graph.

Note

The query is different for each graph type.

6. Enter the query for creating a report in Table.

Note

Example for Query) Enter the following query to import agent user information.  Space is not allowed in 'Agent_ID'.
SELECT node_id AS "Agent_ID", ip AS "IP", ip_connected AS "Connected_IP", computer_name AS "Computer_Name", platform_id AS "Platform" FROM tb_node

7. Enter the report name and the report information.

• Report Name: The name of the scheduled integrated report. The administrator can set the report when creating a report creation schedule.
• Description: Enter the description for the report to create.

8. Click Preview to preview the created the report.
9. Click OK to close the window.

Example for creating a report Template

The example of query for graph (pie, bar or line chart) and table is as below:

1. Pie Chart

The query to create a pie chart to get the number of agents per platform is as follows:

SELECT p.name, COUNT(1) AS value

FROM tb_node AS n

JOIN tb_platform AS p ON n.platform_id = p.platform_id

GROUP BY p.name

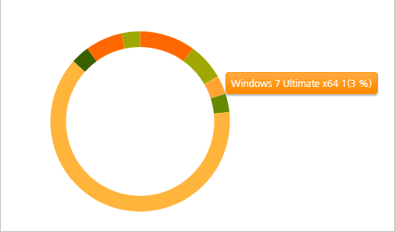

Pie Chart Result

2. Bar Chart

The query to create a bar chart to get the number of malware for the past 7 days is as below:

Note

This is only available with a licensed V3.

Query

SELECT

  TO_CHAR(TO_DATE(i.reg_date,'yyyymmdd'), 'YYYY-MM-DD') AS name

  , COALESCE(t.detect_count, 0) AS value

FROM (

  SELECT TO_CHAR(date_trunc('DAY', CURRENT_TIMESTAMP) - (t.i || 'DAY')::interval, 'YYYYMMDD') AS reg_date

  FROM generate_series(0, 6) AS t(i)

) AS i

LEFT JOIN (

  SELECT t.reg_date, SUM(t.malware_clean_count + t.malware_clean_fail_count) AS detect_count

  FROM tb_timeline_v3 AS t

  WHERE t.node_id = ANY(SELECT node_id FROM tb_node WHERE is_removed = FALSE)

    AND t.reg_date BETWEEN TO_CHAR(CURRENT_TIMESTAMP - '6 DAY'::interval, 'YYYYMMDD') AND TO_CHAR(CURRENT_TIMESTAMP, 'YYYYMMDD')

  GROUP BY t.reg_date

) AS t ON i.reg_date = t.reg_date

ORDER BY 1

Search Report Template

Enter type, name, and creation date in the search keyword input field to view the report template matching the search conditions.

Modify Report Template

You can modify the report template in the following way.

1. Select Report on the top of the page.
2. Select the Report > Report Template tab.
3. You can check the created report template list. Click the template to modify.
4. Modify the required information in <Add Query Report Template>. Using Preview, you can check the report.
5. Click OK to close the window.

Delete Report

You can delete the report template in the following way.

1. Select Report on the top of the page.
2. Select Report Template.
3. When the created report templates list appears, click Delete() on the left side of the report template to delete.
